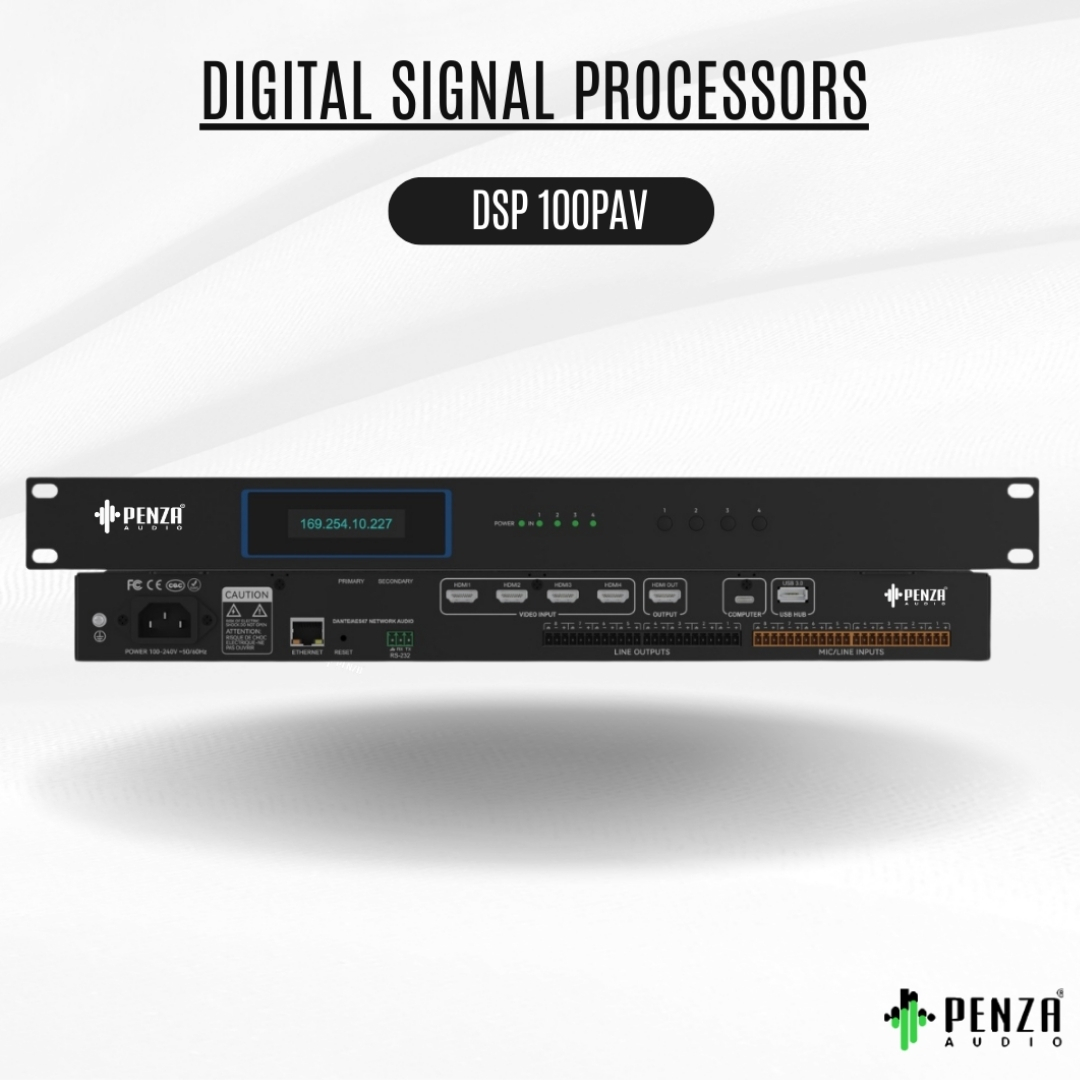

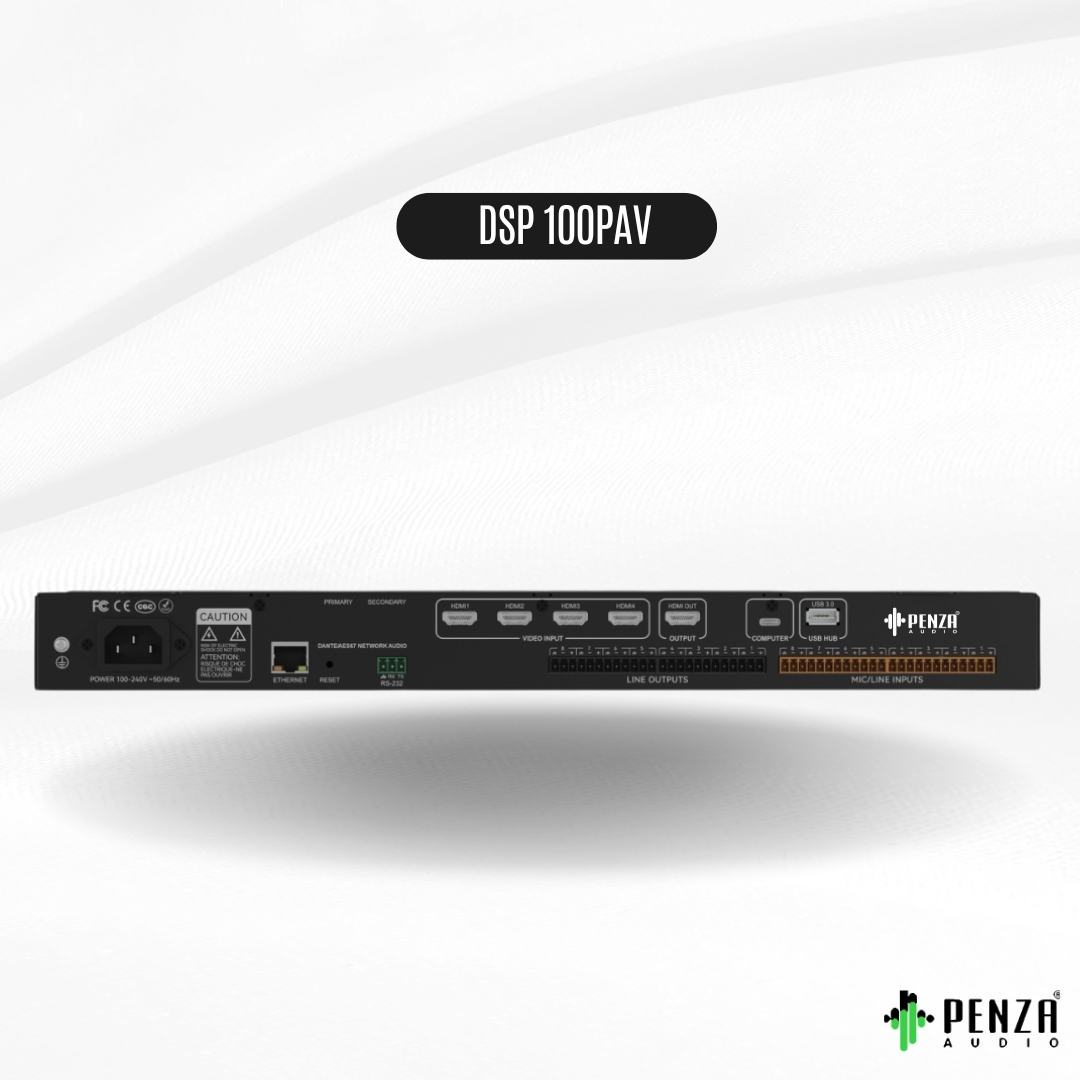

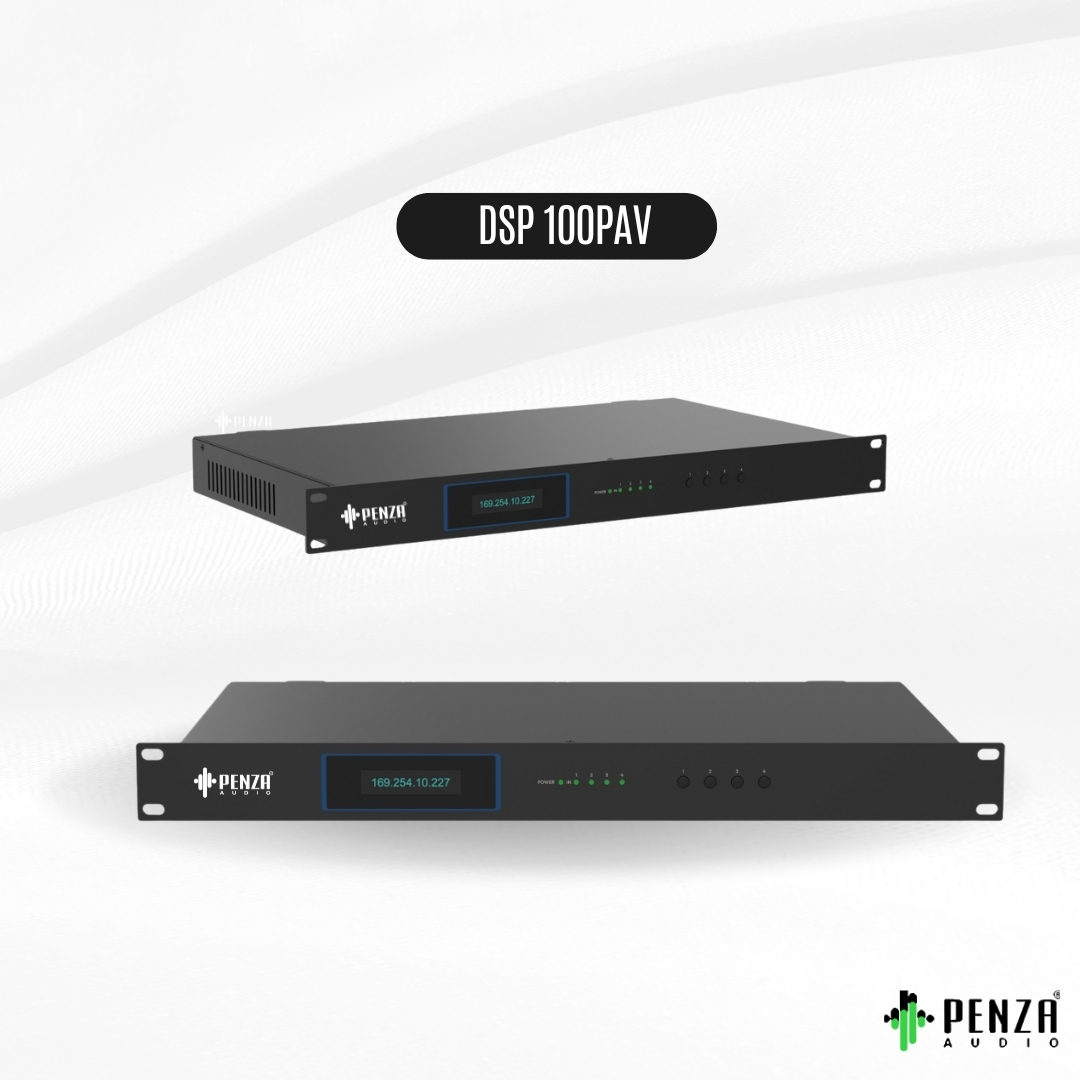

DSP 100PAV

SKU: V5S6T7U8-2-1

In Stock

Key Features

High-performance ADI SHARC 21489 DSP processor running at 450 MHz
Powerful audio processing with 400 MIPS and 1.6 GFLOPS capability
High-quality audio performance with 113 dB input and output dynamic range
Wide frequency response of ±0.3 dB from 20 Hz to 20 kHz
Ultra-low distortion with THD+N less than –95 dB
Supports 48 kHz sampling rate for professional audio applications
Provides +48 V phantom power for condenser microphones
Multiple connectivity options including USB 3.0, USB Type-C, and HDMI output
Stable operation with DC 12 V / 2 A power supply
Compact 1U rack-mount style design for professional AV installations
Reliable performance within an operating temperature range of 0–40 °C

Ask a question

Description
Reviews (0)

Description

Product Features

Integrated Dante Network Audio Protocol
Voice-Activated Video Tracking
ATS Noise Sensing Threshold Automatic Mixing Technology
5×2 HDMI Video Matrix Seamless Switching
4K 60Hz 4:4:4
Full-Duplex Echo Cancellation Noise Suppression Algorithm
Scalable to 24 Inputs, 24 Outputs

The Cretone AV Processing Center is designed to address the need for integrating audio processors, HDMI switches, and USB 3.0 hardware solutions with popular video conferencing software such as Tencent Meeting and Zoom. It aims to enhance the overall audiovisual experience and provide users with seamless integration between these hardware components and software platforms.

PRODUCT SPECIFICATIONS

AUDIO PROCESSING SECTION

Processor

ADI SHARC 21489 @ 450 MHz SIMD

DSP Processing Capability

400 MIPS
1.6 GFLOPS

Sampling Rate

48 kHz ±100 ppm

Frequency Response

±0.3 dB (20 Hz – 20 kHz)

Input Dynamic Range

113 dB

Output Dynamic Range

113 dB

THD + N

Less than –95 dB @ 17 dBu

Phantom Power

+48 V / 10 mA max

INPUT / OUTPUT

USB 3.0 Input Channels

USB Type-C Input Channels

HDMI Output Channels

USB Type-C Output Channels

POWER & ENVIRONMENT

Operating Power Supply

DC 12 V / 2 A, 50 Hz

Operating Temperature

0°C to 40°C

PHYSICAL

Dimensions (W × D × H)

482 × 260 × 45 mm

Shipping Weight

4 kg
