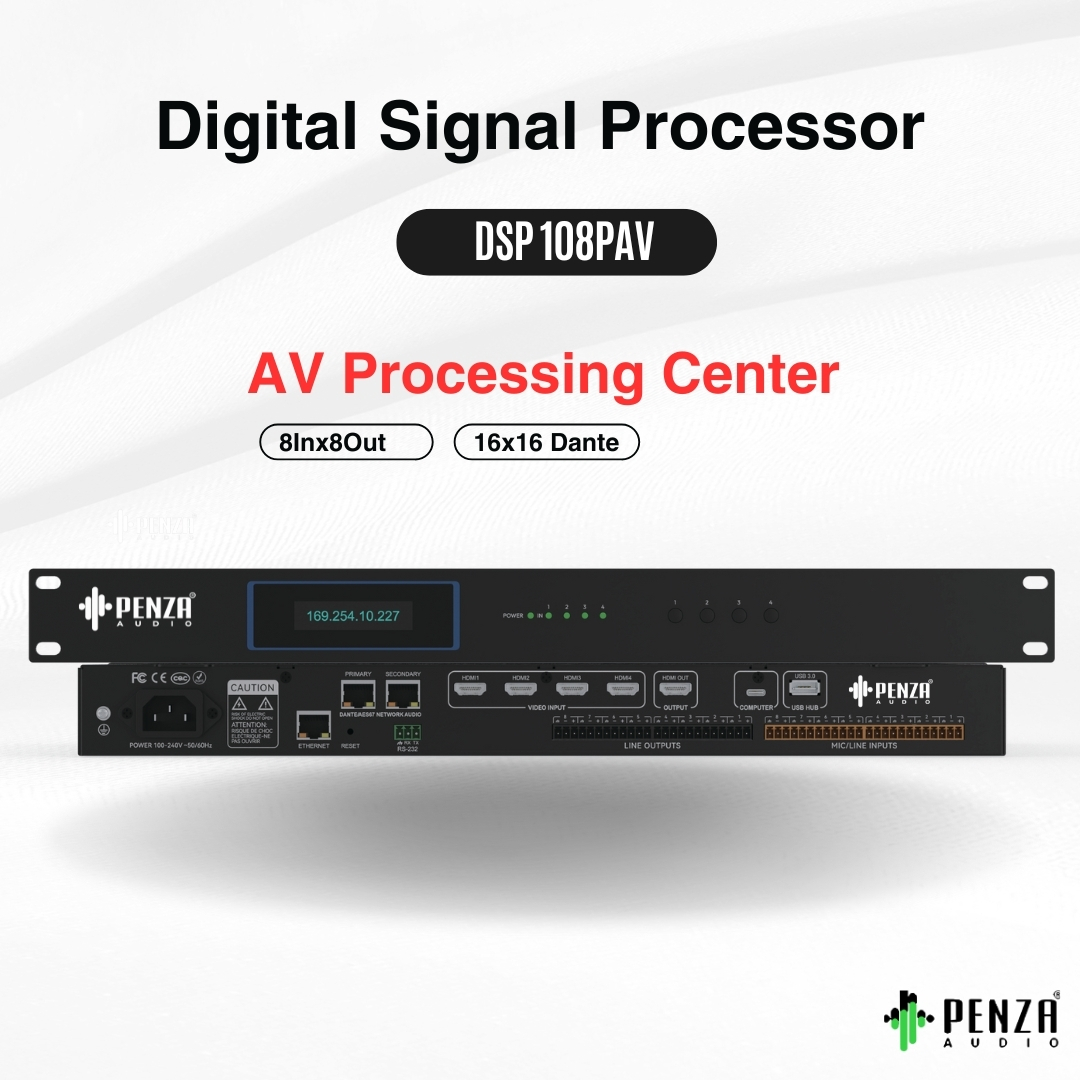

DSP108PAV

SKU: V5S6T7U8-2-1-1

In Stock

Key Features – DSP108PAV

All-in-one professional audio DSP processor with integrated HDMI video matrix
High-performance ADI SHARC 21489 DSP running at 450 MHz
Powerful processing capability with 400 MIPS and 1.6 GFLOPS
Supports 8 × 8 analog audio input and output channels
Supports 16 × 16 Dante audio input and output channels for networked audio systems
Advanced audio algorithms including Acoustic Echo Cancellation (AEC), Feedback Suppression, Noise Reduction, and Auto-Mixer
Delivers high-fidelity audio with wide dynamic range and ultra-low distortion
Integrated HDMI matrix with 4 HDMI inputs and 1 HDMI output
Supports seamless video switching with up to 4K @ 60 Hz (4:4:4) resolution
Intelligent ATS auto-mixing with camera auto-tracking synchronization
ONVIF network camera control with preset save and recall functionality
Multi-window video display supporting 1-, 2-, 3-, and 4-window layouts
USB 3.0 and Type-C interfaces for flexible system integration
Fully compatible with major video conferencing platforms
Rack-mount design suitable for professional AV, conference rooms, and control systems

Ask a question

Description
Reviews (0)

Description

Features

Versatile Function Integration

Combines a professional audio processor and an HDMI matrix into a single DSP108PAV device.
Delivers comprehensive audio-visual processing and centralized system management to meet diverse application requirements.

High-Quality Audio Transmission

Supports up to 8 analog audio inputs and 8 analog audio outputs.
Ensures high-fidelity signal transmission with stable and reliable audio processing for clear performance.

Advanced Audio Processing

Equipped with advanced algorithms, including Acoustic Echo Cancellation (AEC), Feedback Suppression, Noise Reduction, and Auto-Mixer.
Effectively eliminates echo, background noise, and acoustic feedback during multi-participant interactions.
Maintains consistent audio clarity and system stability.

Video Signal Management and Seamless Switching

Integrated seamless HDMI matrix supports multiple video signal formats.
Enables unified video management and smooth, interruption-free switching between multiple sources.
Delivers high-resolution video output with seamless transitions.

Intelligent Control and System Synchronization

ATS auto-mixing technology works in coordination with camera auto-tracking modules.
Automatically adjusts camera angle and zoom based on active speakers.
Bidirectional communication with the video matrix ensures synchronized camera tracking and video output.
Enhances meeting engagement and communication efficiency.

ONVIF Network Camera Control

Supports direct login and control of network cameras via the ONVIF protocol.
Allows camera presets to be saved and quickly recalled through software control.
Ensures broad compatibility and simplified user operation.

Multi-Window Video Display

Supports 1-, 2-, 3-, and 4-window video display configurations.
Dual-window mode provides multiple layout options.
When paired with microphones, enables simultaneous display of fixed views and ATS voice-activated tracking views for greater adaptability.

Platform Compatibility

Fully compatible with major conferencing platforms, including Zoom, Microsoft Teams, Webex, and other mainstream systems.
Provides a smooth, efficient, and reliable meeting experience.

SPECIFICATIONS

AUDIO PROCESSING

Analog Input / Output Channels

8 × 8

Dante Input / Output Channels

16 × 16

Processor

ADI SHARC 21489 @ 450 MHz SIMD

DSP Processing Capability

400 MIPS
1.6 GFLOPS

Input Gain

0 / 3 / 6 / 9 / 12 / 15 / 18 / 21 / 24 / 27 / 30 / 33 / 36 / 39 / 42 / 45 / 48 dB

Frequency Response

20 Hz – 20 kHz (+0.04 dB to –0.3 dB)

Maximum Level

+18 dBu

Sampling Rate / Bit Depth

48 kHz / 24-bit

THD + N

< 0.001% (1 kHz, +4 dBu, A-weighted)

Device Noise

≤ –95 dB (A-weighted)

Input Common Mode Rejection Ratio (CMRR)

≥ 81 dB @ 1 kHz, 0 dBu

Output Crosstalk

< –92 dB @ 1 kHz, 0 dB gain

Input Dynamic Range

113 dB

Output Dynamic Range

113 dB

VIDEO PROCESSING

HDMI Input

USB 3.0 Input

Type-C Output

HDMI Output

Video Resolution

4K @ 60 Hz (4:4:4)

Switching Mode

Seamless switching

DEVICE PARAMETERS

Operating Voltage

110 – 240 VAC

Dimensions (W × D × H)

482 × 259 × 45 mm

Weight

Net Weight: 3.37 kg
Gross Weight: 4.31 kg
