Public Address and Voice Alarm System

CEILING SPEAKERS – PCE – 76T

SKU: V5S6T7U8-1-2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1

In Stock

KEY FEATURES

6″ ceiling speaker — larger driver size compared with smaller PCE models, providing richer bass and fuller sound for music and speech.
Flush-mount design — integrates neatly into ceilings for discreet installation and wide sound coverage; ideal for commercial or residential installations.
Two-way full-range performance — typically incorporates a dedicated tweeter + woofer design for balanced highs and lows (improved clarity and detail).
100 V line (PA system) compatibility — includes a built-in transformer with selectable power taps to match output requirements in distributed audio/public address systems.
Passive speaker (external amp required) — needs to be driven by an external amplifier or PA system rather than having internal amplification.
Applications: suited for background music, public announcements, offices, shops, restaurants, hotels, halls and similar spaces requiring ceiling-mounted audio.

Ask a question

Description
Reviews (0)

Description

DESCRIPTION

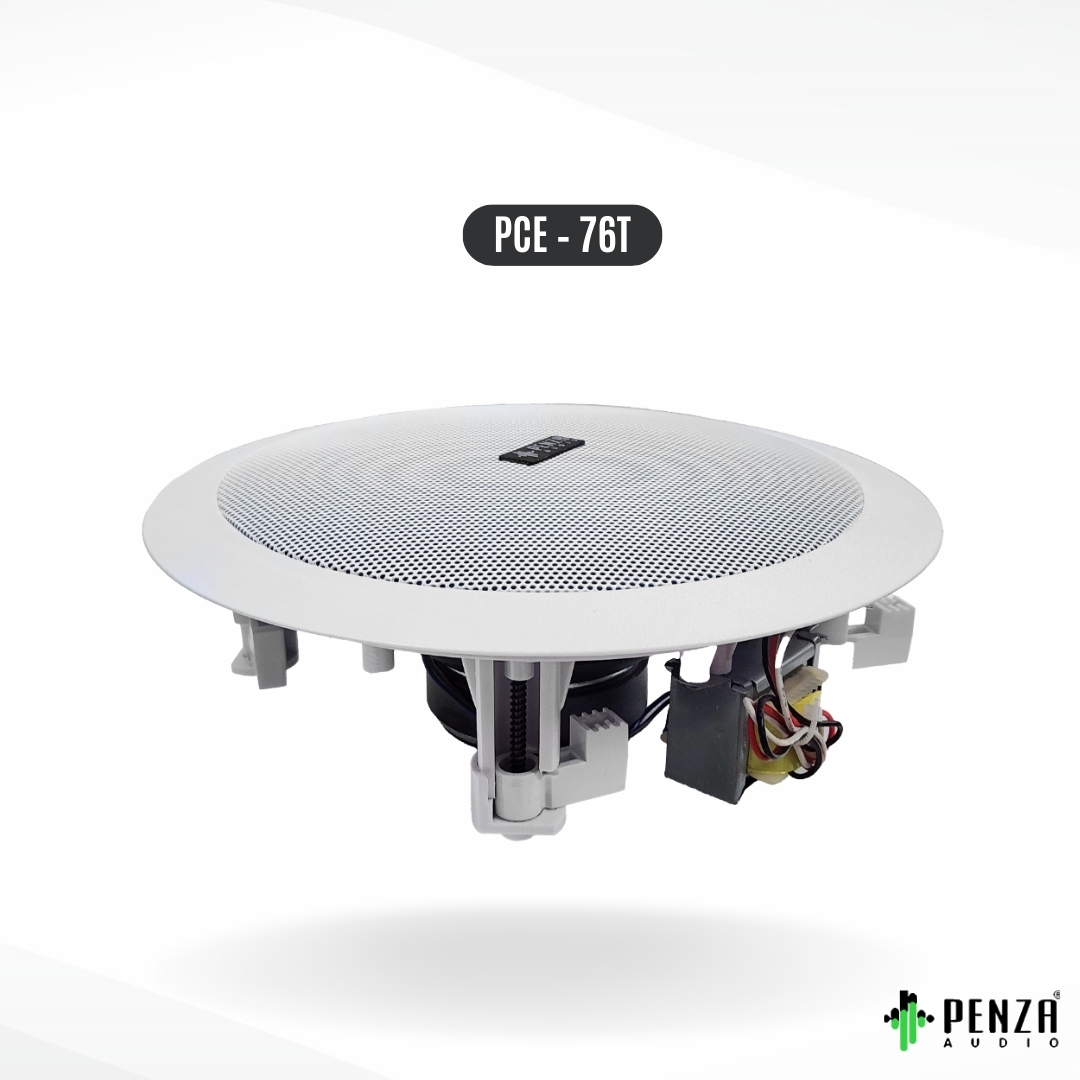

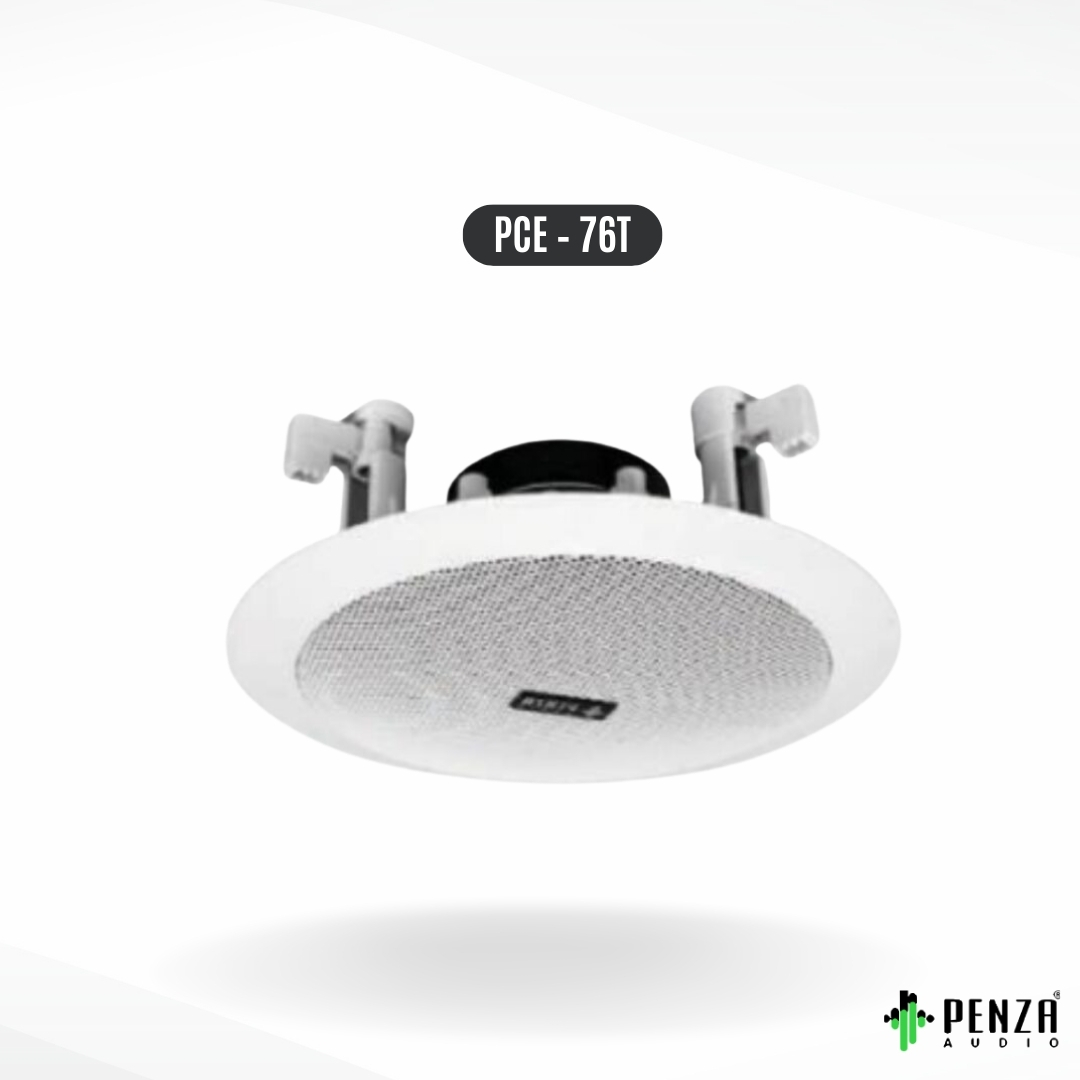

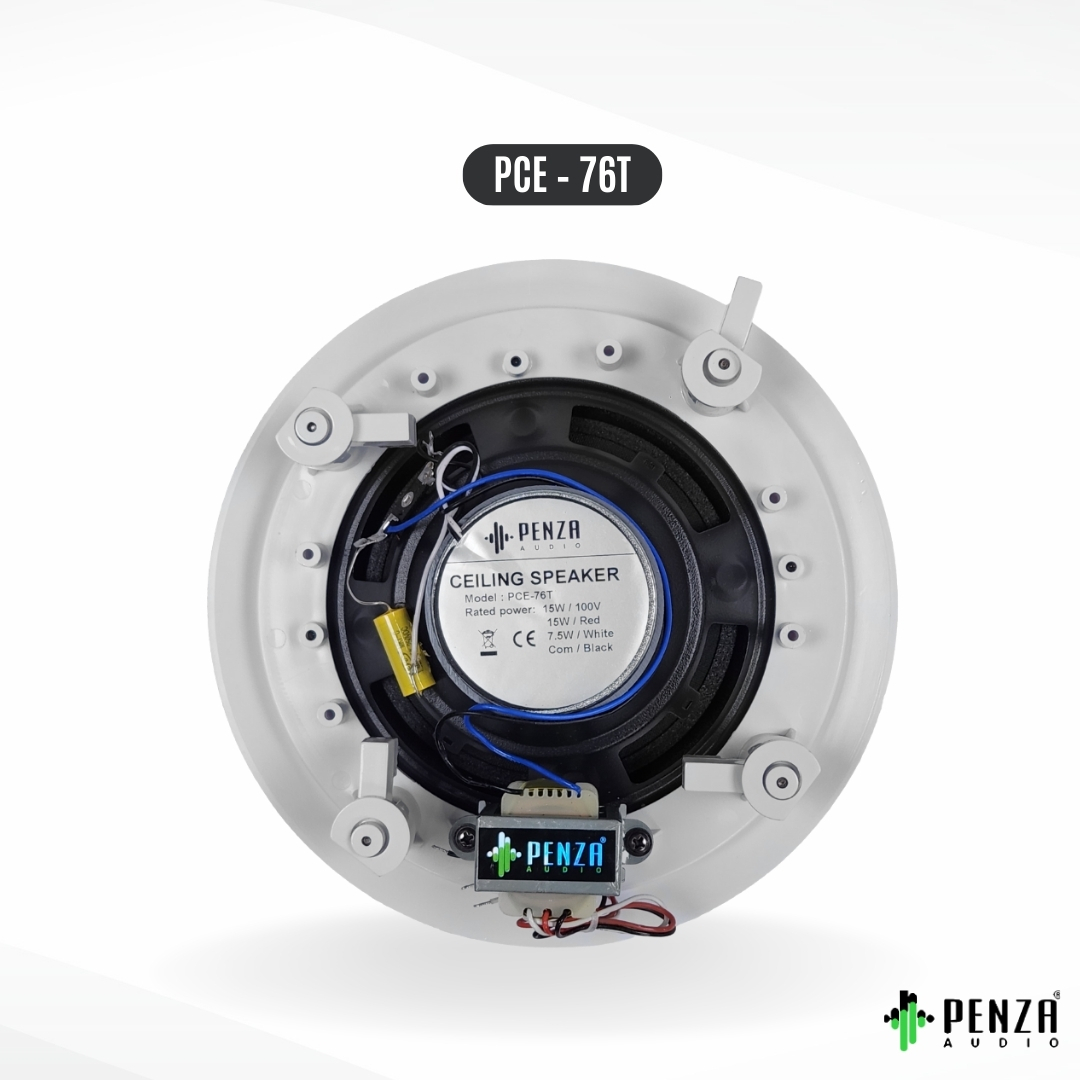

PCE – 76T

Ceiling speaker with an elegant, aesthetically pleasing design with Excellent sound quality, combined with an ultra-modern low profile appearance, makes this ideally suited for high end offices, restaurants, bars, malls, etc. Operates on 100V line with power taps of 40/20/LOW. Moulded plastic frame with metal mesh grill. PCE-75T is a 5″ woofer, PCE-76T is a 6″woofer, and PCE-78T is an 8″ woofer. 100V line operation with easy power tap selections through a terminal block.

RMS POWER		15W/10W
SPEAKER SIZE		6″ Coaxial Speaker
VOLTAGE		100 V
SENSIVITY		88dB
FREQUENCY RESPONSE		92-18kHz
MATERIAL		ABS
DIMENSION		230 X 90
WEIGHT		0.8 KG
