Public Address and Voice Alarm System

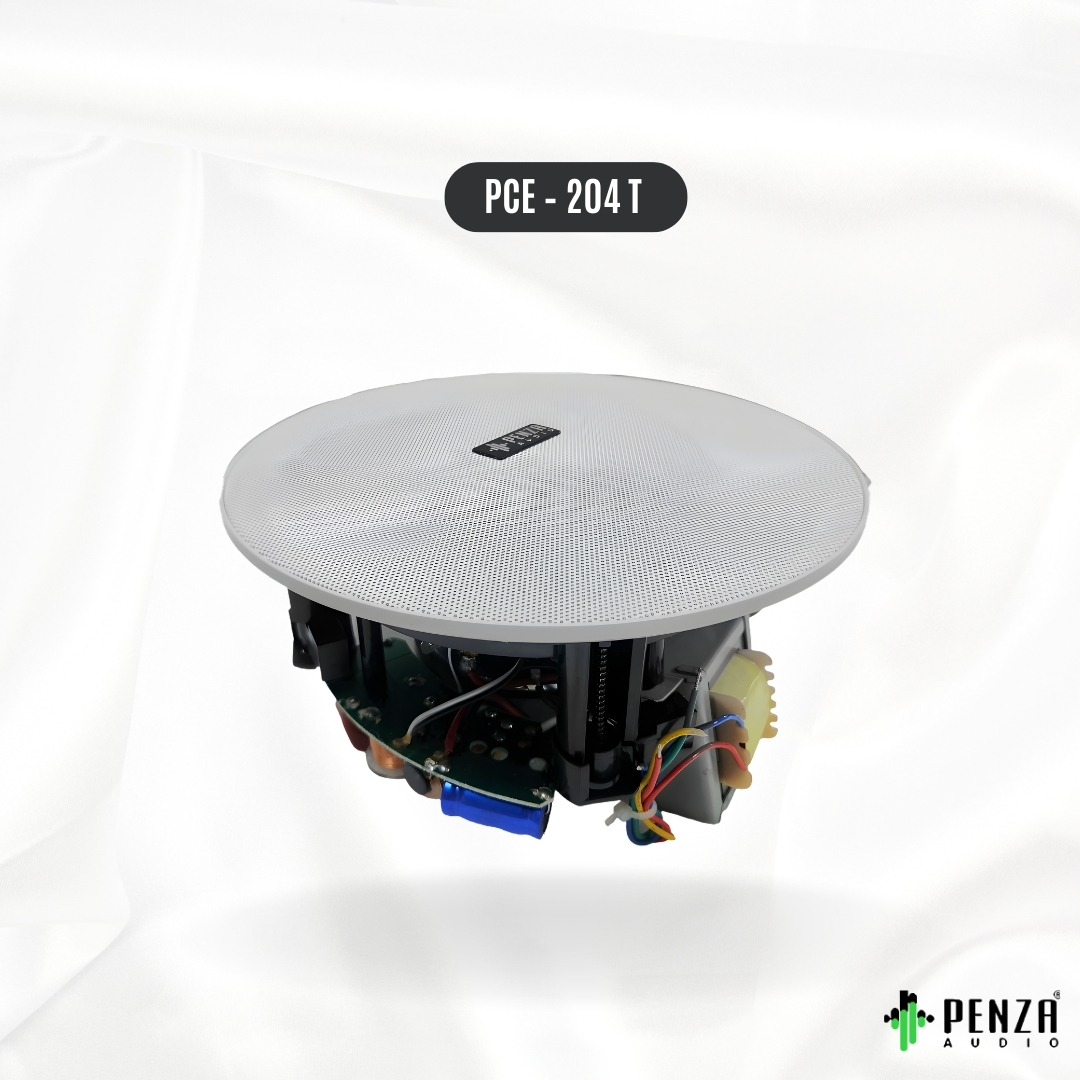

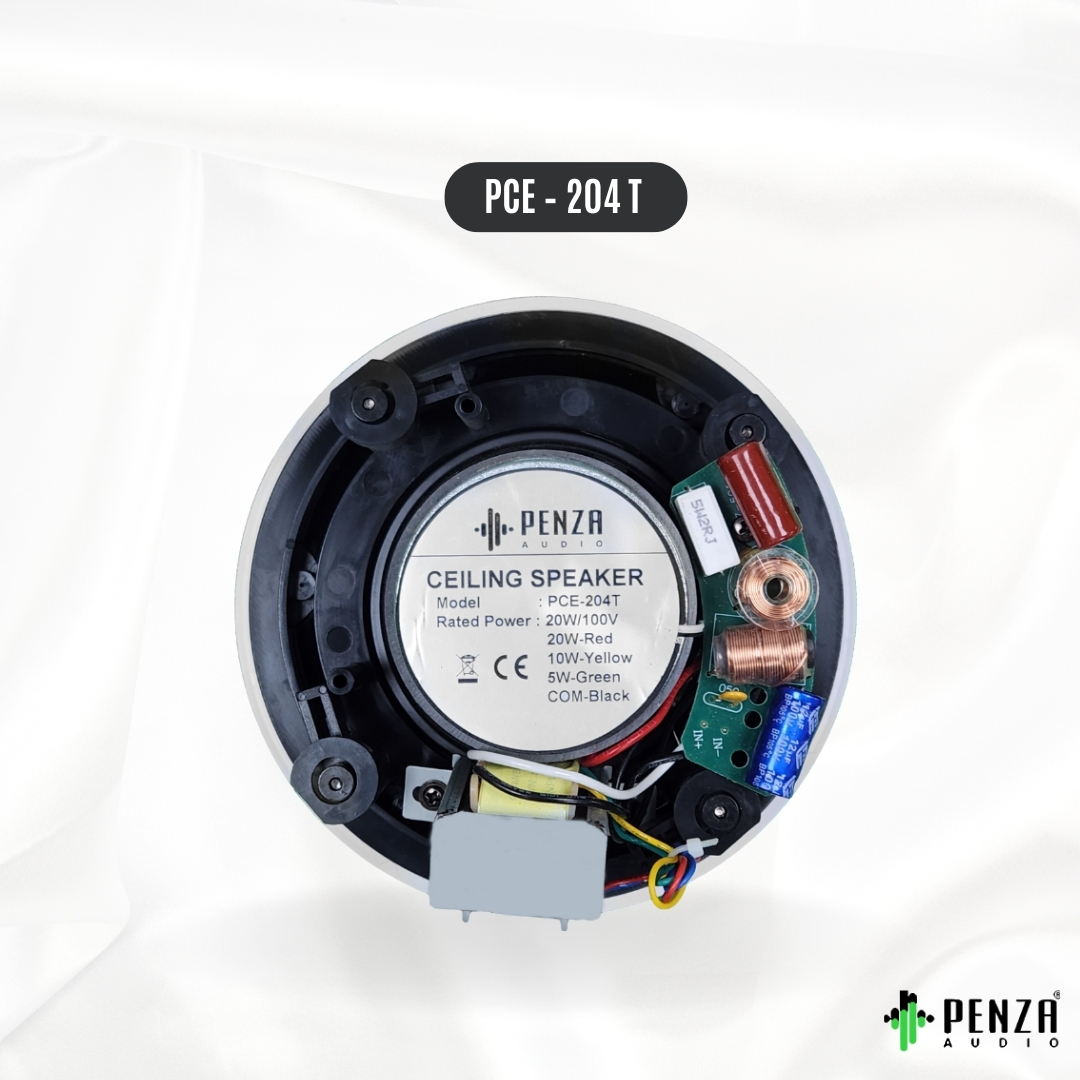

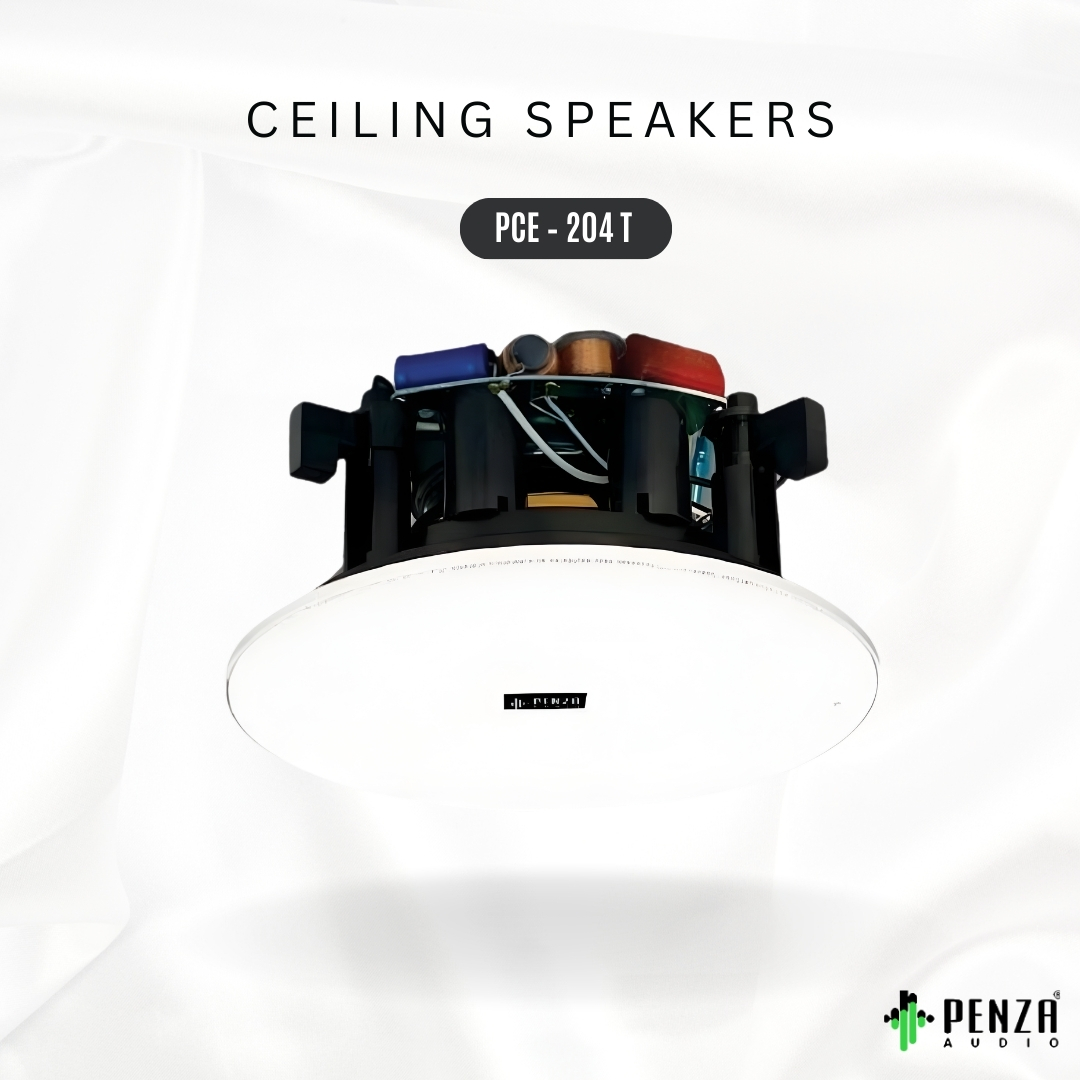

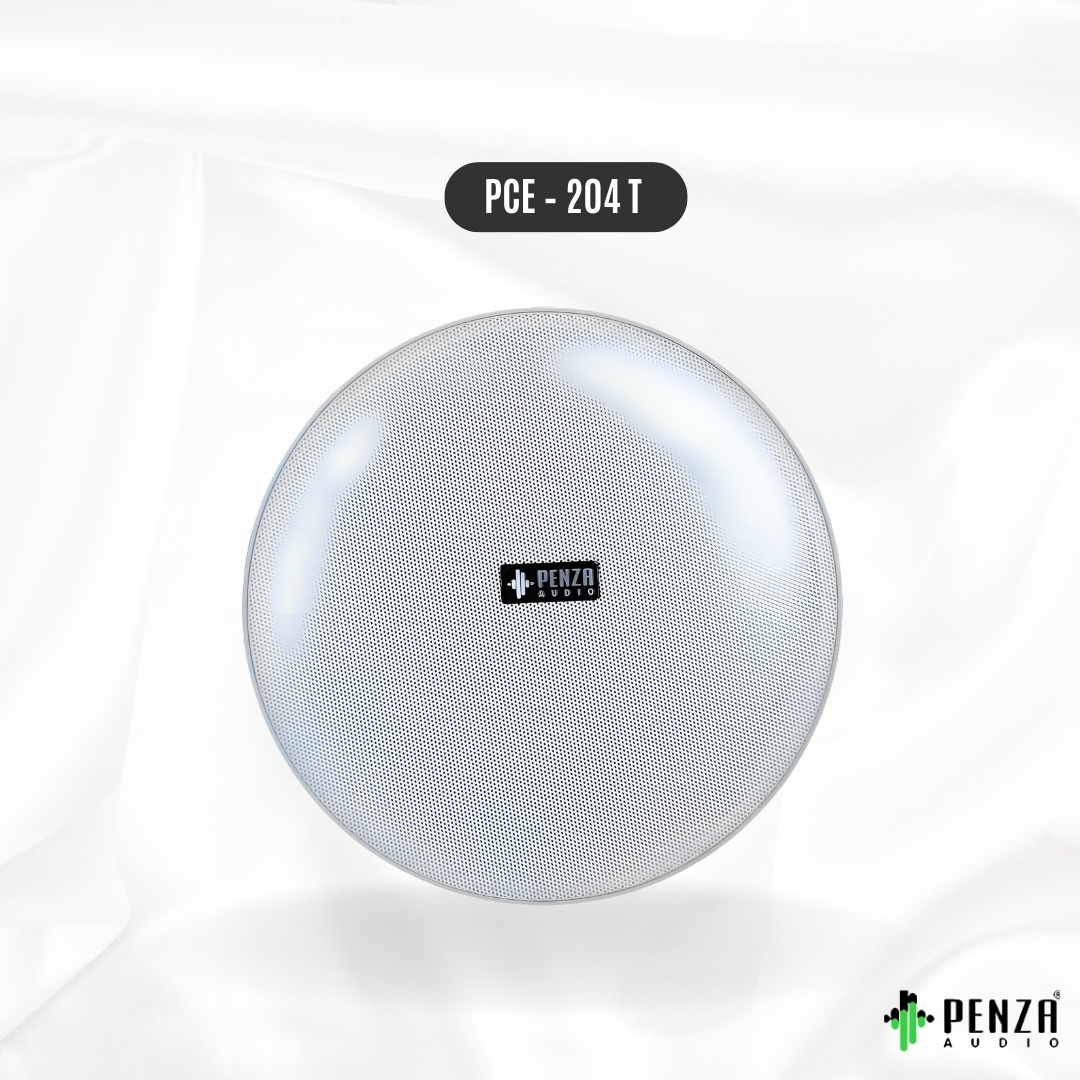

CEILING SPEAKERS – PCE – 204 T

SKU: V5S6T7U8-1-2-1-1-1-1-1-1-1-1-1-1-1-1-2-1

In Stock

KEY FEATURES

Flush-mount ceiling speaker — designed to install discreetly into ceiling panels for distributed audio systems.
4″ woofer driver — offers balanced sound reproduction for speech and background music.
100 V line operation — suitable for public address (PA) systems with easy power line integration.
Transformer with power tap selection — allows setting different power levels for matching amplifier/line requirements.
Passive speaker (no built-in amplifier) — requires connection to an external PA amplifier or mixer.
Application — ideal for commercial indoor environments like offices, shops, hotels, restaurants and background music or paging systems

Ask a question

Description
Reviews (0)

Description

DESCRIPTION

PCE – 204 T

High power 1-way flush mount ceiling speaker for excellent reproduction of both speech and music. The Penza ceiling speaker enables high frequencies to be directed wherever they are most required. operates on 100V line. Moulded plastic & metal frame with a mesh grill. PCE-803 is a 3″woofer, PCE-204T is a 4″ woofer, PCE-705 is a 5″ woofer, and PCE-60 is a 6″ woofer. 100V line operation with easy power tap selection through a terminal block.

RMS POWER				20W
SPEAKER SIZE				4″
VOLTAGE				100 V
SENSIVITY				88dB
FREQUENCY RESPONSE				100-20kHz
MATERIAL				ABS
DIMENSION				180 X 80
WEIGHT				1.2 KG

Reviews

There are no reviews yet.

Be the first to review “CEILING SPEAKERS – PCE – 204 T”
