HORN SPEAKERS PH0-30s

SKU: V5S6T7U8-1-2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-10
In Stock

KEY FEATURES

  • 30 W Rated Power — provides strong audio output for medium to large spaces.

  • Horn-Loaded Design — directs sound efficiently for better distance coverage.

  • High Speech Clarity — optimized for clear announcements and paging.

  • High Sensitivity — produces louder sound with less input power.

  • PA System Compatible — works with standard PA amplifiers, often supporting 100 V line systems (with selectable power taps).

  • Durable Construction — rugged housing built for long-term use.

  • Easy Installation — mounting brackets support wall or pole installation.

  • Wide Applications — suitable for educational buildings, industrial facilities, public spaces, transit hubs, and halls.

Description

DESCRIPTION

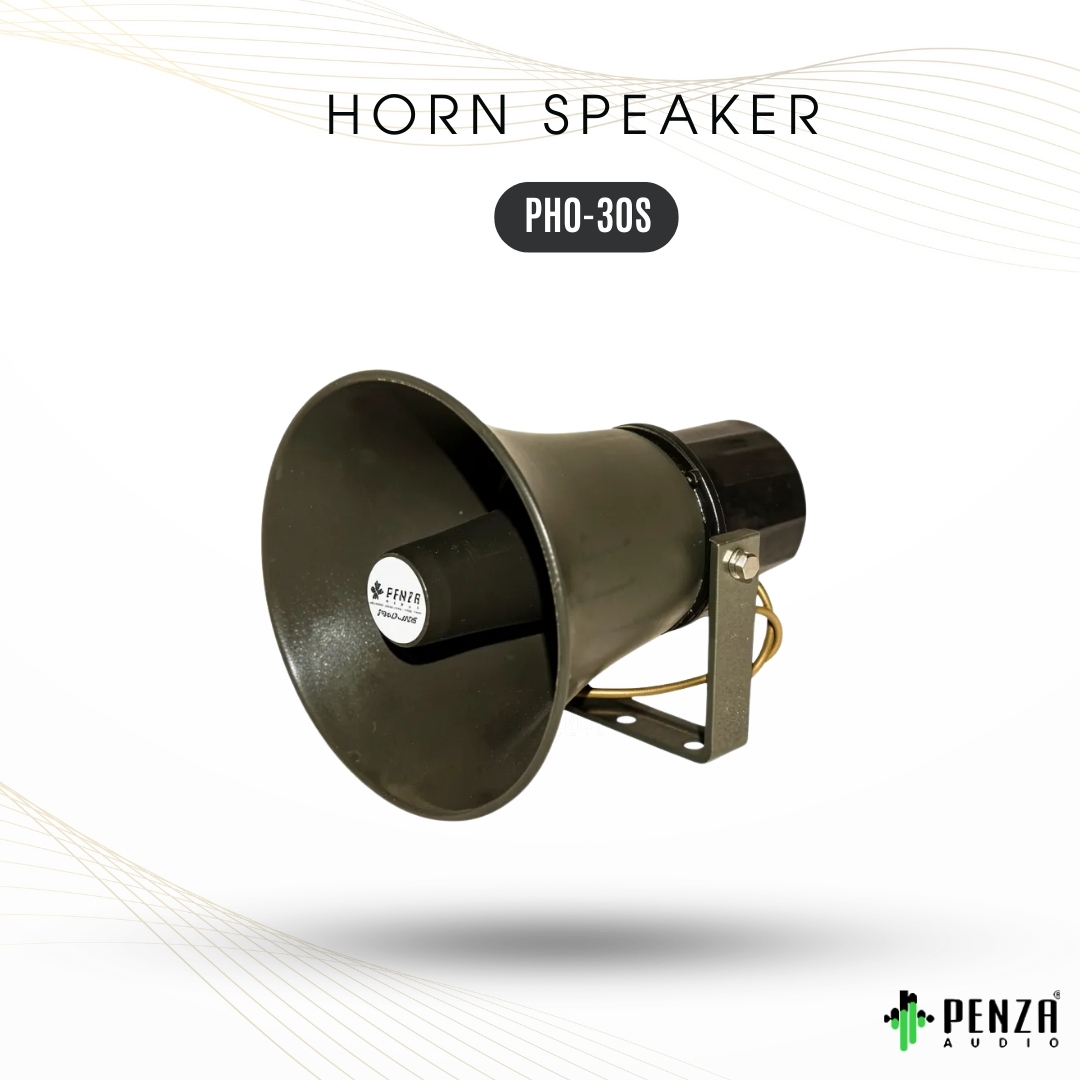

PH0-30S

The PH0-30S is a 30 W horn-type public address (PA) speaker designed for loud, clear voice announcements and paging over medium to large areas. Its horn-loaded acoustic design focuses sound forward, improving speech intelligibility and long-distance reach compared with regular speakers.

POWER 30W/15W/7.5W/3.8W/ 8 ohms
VOLTAGE 70V/100V
SENSIVI1Y 400-5kHz
FREQUENCY RESPONSE 500 Meter
MATERIAL ALUMINUM
DIMENSION 285 X 280 X 296
WEIGHT 2 KG



Reviews

There are no reviews yet.

Be the first to review “HORN SPEAKERS PH0-30s”

Your email address will not be published. Required fields are marked *

Quick Comparison

HORN SPEAKERS PH0-30s removeCEILING SPEAKERS – PCE – 58T removeCOLUMN SPEAKERS PCM-10T removeCOLUMN SPEAKERS PCM-15T removeCEILING SPEAKERS – PCE – 76T removeCEILING SPEAKERS – PCE – 45T remove
NameHORN SPEAKERS PH0-30s removeCEILING SPEAKERS – PCE – 58T removeCOLUMN SPEAKERS PCM-10T removeCOLUMN SPEAKERS PCM-15T removeCEILING SPEAKERS – PCE – 76T removeCEILING SPEAKERS – PCE – 45T remove
ImageHORN SPEAKERS PH0-30sCEILING SPEAKERS – PCE – 58TCOLUMN SPEAKERS PCM-10TCOLUMN SPEAKERS PCM-15TCEILING SPEAKERS – PCE – 76TCEILING SPEAKERS –  PCE – 45T
SKUV5S6T7U8-1-2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-10V5S6T7U8-1-2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1V5S6T7U8-1-2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2V5S6T7U8-1-2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-3V5S6T7U8-1-2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1V5S6T7U8-1-2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1
Rating
Price
Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
WeightN/AN/AN/AN/AN/AN/A
DimensionsN/AN/AN/AN/AN/AN/A
Additional information
Description

KEY FEATURES

  • 30 W Rated Power — provides strong audio output for medium to large spaces.

  • Horn-Loaded Design — directs sound efficiently for better distance coverage.

  • High Speech Clarity — optimized for clear announcements and paging.

  • High Sensitivity — produces louder sound with less input power.

  • PA System Compatible — works with standard PA amplifiers, often supporting 100 V line systems (with selectable power taps).

  • Durable Construction — rugged housing built for long-term use.

  • Easy Installation — mounting brackets support wall or pole installation.

  • Wide Applications — suitable for educational buildings, industrial facilities, public spaces, transit hubs, and halls.

KEY FEATURES

  • Elegant low-profile ceiling speaker — designed for a clean, unobtrusive look when mounted in ceilings.

  • Full-range speaker — delivers clear, highly intelligible audio suitable for both speech and background music.

  • 6 W continuous RMS power handling — appropriate for small-to-medium spaces and distributed audio systems.

  • 100 V line operation with selectable power taps — works with standard public-address or background music systems; power taps are easily selected via a terminal block.

  • Frequency response: approximately 50 Hz – 18 kHz — supports a wide audio range from deep tones to clear highs.

  • Sensitivity: around 92 dB — ensures efficient sound output with less power.

  • Easy installation — mounting typically includes spring-loaded wing clamps for quick and secure ceiling fit.

  • Construction & dimensions: ABS housing; approx 270 × 85 mm size, weight ~1.3 kg (varies slightly by production run).

KEY FEATURES

  • For Indoor & Outdoor applications such as in Halls, Auditoria, and Airport Lounges.
  • Weather-resistant -for use under roof eaves. Foam layer to protect speakers from dust.
  • An array of speakers radiates a forward sound beam for wider audience coverage.
  • Mounting clamps & hardware supplied.
  • Column speakers in a metal cabinet with a powder-coated finish.
  • Speaker connections through a terminal strip at the rear.
  • Available in 100V line matching transformer version and low impedance version.

KEY FEATURES

  • For Indoor & Outdoor applications such as in Halls, Auditoria, and Airport Lounges.
  • Weather-resistant -for use under roof eaves. Foam layer to protect speakers from dust.
  • An array of speakers radiates a forward sound beam for wider audience coverage.
  • Mounting clamps & hardware supplied.
  • Column speakers in a metal cabinet with a powder-coated finish.
  • Speaker connections through a terminal strip at the rear.
  • Available in 100V line matching transformer version and low impedance version.

KEY FEATURES

  • 6″ ceiling speaker — larger driver size compared with smaller PCE models, providing richer bass and fuller sound for music and speech.

  • Flush-mount design — integrates neatly into ceilings for discreet installation and wide sound coverage; ideal for commercial or residential installations.

  • Two-way full-range performance — typically incorporates a dedicated tweeter + woofer design for balanced highs and lows (improved clarity and detail).

  • 100 V line (PA system) compatibility — includes a built-in transformer with selectable power taps to match output requirements in distributed audio/public address systems.

  • Passive speaker (external amp required) — needs to be driven by an external amplifier or PA system rather than having internal amplification.

  • Applications: suited for background music, public announcements, offices, shops, restaurants, hotels, halls and similar spaces requiring ceiling-mounted audio.

KEY FEATURES

PCE – 45T

High power 2-way flush mount ceiling speaker for excellent reproduction of both speech and music. It has an excellent Tweeter system built into the product. Amazing Dual cone speaker technology with Polypropylene cone. Tweeters can be tilted at an angle to focus clear, intelligible sound in the desired direction. Operates on a 100V line with power taps of 20/30/40W. PCE-45T is a 5″ woofer, PCE-46T is a 6″ woofer, and PCE-48T is an 8″ woofer. Very clean and wide frequency response. Molded plastic frame with a metal mesh grill. Stylishly designed grill which integrates well with all interiors. l00V line operation with easy power tap selection through a terminal block.
